SG-CLD005W02
1. Summarize:
Model: | Edition |
SC-CLD005W02 | A0 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED ceiling light Features:
3.1, energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 35000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

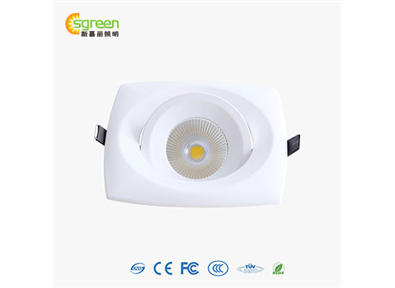

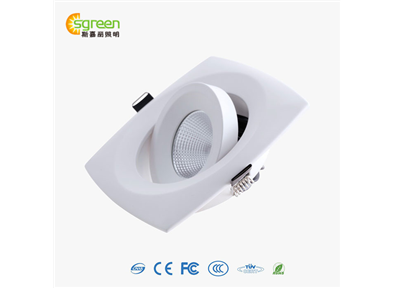

4. Product size photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥85% | COB | Isolated driver, EMC approved | white |
6. Specification
LED Model No. | SC-CLD005W02 | ||
Rated power | 5 ±1W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 9-15V | ||
Input current | 280mA±5% | ||
Efficiency | ≥80% | ||
Cutout： | Ф97mm | ||
P.F | ≥0.50 | ||
Lighting CCT | Warm white | Natural white | Pure white |
3000±200k | 4000±300k | 6000±300k | |
Lighting LM | 370±50LM | 390±50LM | 430±50LM |
Lighting View Angle | 30° | ||
Lighting CRI | ≥70/≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 25,000 HR | ||
IP Rate | IP20 | ||
7. Packing, transportation & storage requirement
7.1, Packing Material
Name | Description | QTY | ||
White box | 145*145*75mm | 1pcs | N.W | 310±30g/1PCS |
Big carton case | 595*450*390mm | 1/60pcs | G.W | 20.6±0.5kg/carton |
7.2, Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
7.3, Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
7.4, Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
7.5, Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
