SG-MR16A003W01
1. Summarize of 3W MR16 LED spot light
Model: | Edition |
SC-MR16A003W01 | A5 |
2. Application
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED Spot light MR16 Product Features
* Conform to ROHS requires，Energy-saving and environmental, no ultra-violet, mercury or infrared,
* Isolated low voltage, constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
* Adopt imported light source and advanced heat dissipation technology, life span achieve to more than 25000 hrs.
* Can be frequent starting, no flickering or glaring; high CRI; shock-resistant;
* Simple elegant appearance, new attractive design, suitable for many illumination places.

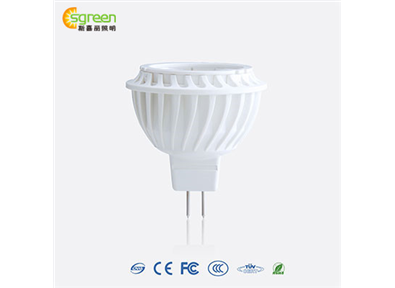

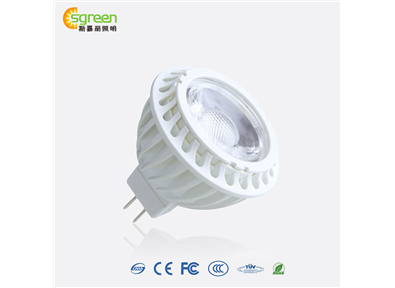

4. Product Photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥85% | COB | wide Input driver | Black |
6. Specification of 3W MR16 LED spot light
ED Model No. | SC-MR16A003W01 | |||
Rated power | 3W ±0.5W | |||
Input Voltage | AC/DC 6-13V | |||
Output Voltage | 9.2V | |||
Input current | 280mA±5% | |||
Efficiency | ≥85% | |||
Base： | MR16 | |||
P.F | ≥0.50 | |||
Light Source CRI | Warm white | Natural white | Pure white | |
3000±200k | 4500±300k | 6000±300k | ||
Light Source Luminous flux（lm） | 210±30LM | 225±30LM | 240±30LM | |
Lighting View Angle | 25°、36°、60° | |||
Lighting CRI | ≥70/≥80 | |||
Key point temperature | LED Welding foot | Lamp shell | ||
≤75℃ | ≤70℃ | |||
Working Temp. | -10℃~40℃ / R.H.≤85% | |||
Storage Temp. | -30~65℃ | |||
Life span | 25,000 HR | |||
IP Rate | IP20 | |||
6. Packing, transportation & storage requirement
Packing Material of 3W MR16 LED spot light
Name | Description | QTY | N．W | G．W |
LED Lignt | ￠50*53.3mm | 1PCS | 40G | / |
White box | 50*50*65mm | 1pcs | 3G | 43±2g/1PCS |
Big carton case | 515*515*345mm | 1/500pcs | 2KG | 22.5Kg/carton |
* Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
* Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
* Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
* Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
