SG-GXH011W01
1. Summarize:
Model: | Edition |
SC-GXH011W01 | A0 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. Grille down light Features:
3.1, energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 35000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

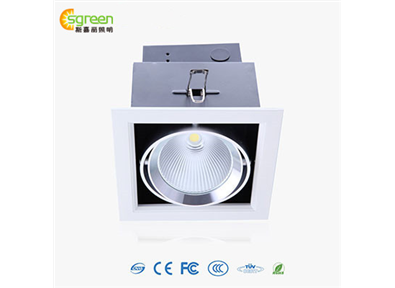

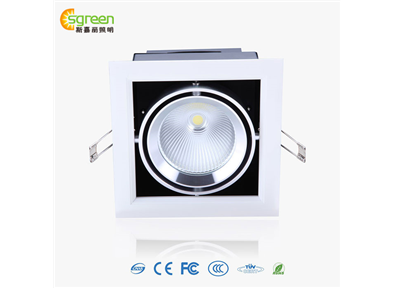

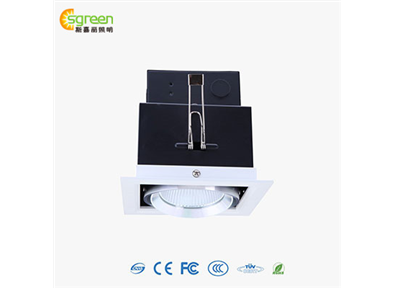

4. Product size photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥95% | COB | Isolated driver, EMC approved | white+black |
6. Specification
LED Model No. | SC-GXH011W01-30 | SC- GXH011W01-40 | SC- GXH011W01-60 |
Power | 11±1W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 36-38V | ||
Input current | 300mA±5% | ||
Efficiency | ≥85% | ||
Cutout | 125*125MM | ||
Lighting CCT | Warm white | Natural white | Pure white |
3000±200k | 4200±250k | 6200±250k | |
Lighting LM | 800±50LM | 840±50LM | 880±50LM |
Lighting View Angle | 30°/45° | ||
Lighting CRI | ≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 35,000 HR | ||
IP Rate | IP20 | ||
7. Packing, transportation & storage requirement
7.1, Packing Material
Name | Description | QTY | Weight |
PE bag | 340*230mm | 1pcs | / |
White box | 200*180*175 | 1pcs | 800±30g/1PCS |
Outer Carton | 410*550*360MM | 12pcs | 10.5±0.5kg/carton |
7.2, Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
7.3, Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
7.4, Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
7.5, Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
