SG-GXJ045W01
1. Summarize:
Model: | Edition |
SC-GXJ045W01-30/40/60 | A0 |
2. Application of 45W LED grille down light
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. Grille Down light product features:
* Conform to ROHS requires，Energy-saving and environmental, no ultra-violet, mercury or infrared,
* Isolated low voltage, constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
* Adopt imported light source and advanced heat dissipation technology, life span achieve to more than 35000 hrs.
* Can be frequent starting, no flickering or glaring; high CRI; shock-resistant;
* Simple elegant appearance, new attractive design, suitable for many illumination places.

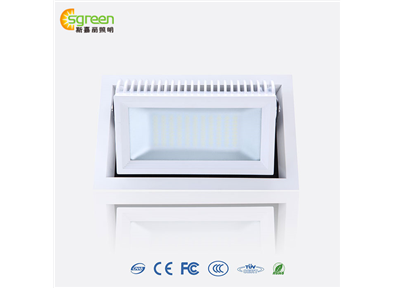

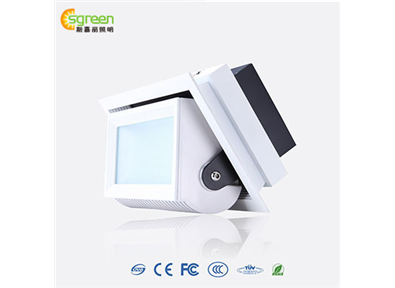

4. Product Photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥95% | COB | Constant Current driver, EMC approved | white+black |
6. Specification
LED Model No. | SC-GXJ045W01-30 | SC- GXJ045W01-40 | SC- GXJ045W01-60 |
Power | 45W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 30-36V | ||
Input current | 300mA±5% | ||
Efficiency | ≥85% | ||
Cutout： | 220*130MM | ||
Lighting CCT | 3000±250k | 4000±250k | 6000±250k |
Lighting LM | 3600±150LM | 3800±150LM | 4000±150LM |
Lighting View Angle | 30°/45° | ||
Lighting CRI | ≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 35,000 HR | ||
IP Rate | IP20 | ||
7. Packing, transportation & storage requirement
Packing Material of 45W LED grille down light
Name | Description | QTY | Weight |
PE bag | 400*230mm | 1pcs | / |
White box | 300*185*180 | 1pcs | 2160±30g/1PCS |
Outer Carton | 310*565*370MM | 6pcs | 13.5±0.5kg/carton |
* Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
* Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
* Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
* Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
