SG-A54M007W01
1. Summarize of 7W e27 led bulb light
Model: | Edition |
SC-A54M007W01-30/40/60 | A0 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. Product Features:
* Conform to ROHS requires，Energy-saving and environmental, no ultra-violet, mercury or infrared,
* Isolated low voltage, constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
* Adopt imported light source and advanced heat dissipation technology, life span achieve to more than 25000 hrs.
* Can be frequent starting, no flickering or glaring; high CRI; shock-resistant;
* Simple elegant appearance, new attractive design, suitable for many illumination places.

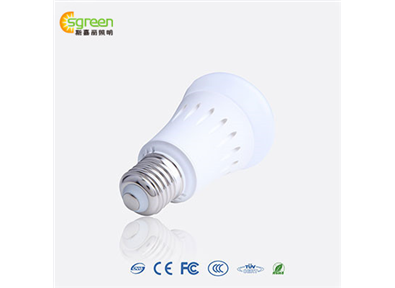

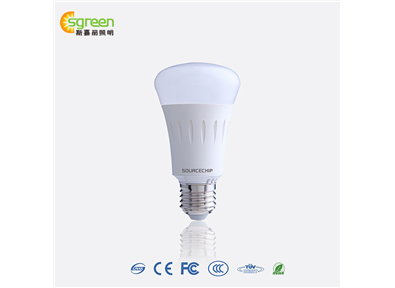

4. LED Bulb Product Photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥89% | 5630 0.5W | wide Input driver | white |
6. Specification of 7W e27 led bulb light
ED Model No. | SC-A54M007W01-30 | SC- A54M007W01-40 | SC- A54M007W01-60 | |
Rated power | 7W | |||
Consume power | 7±1W | |||
Input Voltage | AC 100-240V | |||
Output Voltage | 21-24V | |||
Output current | 280mA±5% | |||
Base： | E27 | |||
P.F | ≥0.50 | |||
Lighting CCT | 3000±200k | 4200±250k | 6200±250k | |
Lighting LM | 560±50LM | 570±50LM | 590±50LM | |
Lighting View Angle | 150° | |||
Lighting CRI | ≥80 | |||
Working Temp. | -10℃~40℃ / R.H.≤85% | |||
Storage Temp. | -30~65℃ | |||
Life span | 35,000 HR | |||
IP Rate | IP20 | |||
6. Packing, transportation & storage requirement
Packing Material of 7W e27 led bulb light
Name | Description | QTY | Weight |
White box | 65*65*120MM | 1pcs | 125±30g/1PCS |
Big carton case | 335*335*245MM | 50pcs | 7.75±0.5kg/carton |
* Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
* Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
* Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
* Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
