SG-A65A007W01
1. Summarize:
Model: | Edition |
SC-A65A007W01 | A0 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED bulb Features:
3.1, Energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
3.2, Driver uses international advanced isolated low voltage constant current driving scheme and reasonable layout design, improving the precision of constant current of the driver and surge handling capability, so the led light source can work more stably under frequent switching condition. Driver output has over current protection, over voltage protection and short circuit protection, to ensure the safety and stability of the product.
3.3, No flickering and glaring; high CRI; shock-resistant;
3.4, Professional appearance design makes the product simple and elegant, suiting for many illumination places.
3.5,LED light source is adopted advanced making process and high quality chips, so the led is very bright.

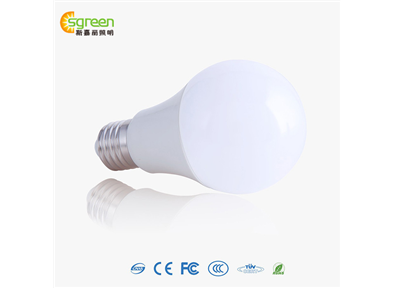

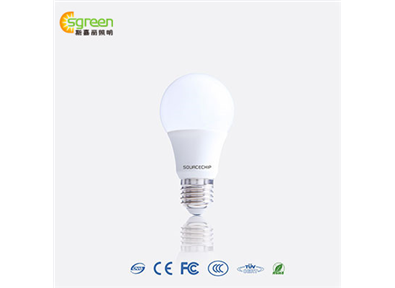

4. Product size photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥85% | SMD 5630 0.5W | wide Input driver | white |
6. Specification
LED Model No. | SC-A65A007W01 | ||||
Rated power | 7W | ||||
Consume power | 7±1W | ||||
Input Voltage | AC 100-240V | ||||
Output Voltage | 21-24V | ||||
Output current | 280mA±5% | ||||
Base: | E27 | ||||
P.F | ≥0.50 | ||||
Lighting CCT | 2700-6500K | ||||
Lighting LM | 370±50 lm | 385±50 lm | 385±50 lm | 400±50 lm | |
Lighting View Angle | 300° | ||||
Lighting CRI | ≥80 | ||||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||||
Storage Temp. | -30~65℃ | ||||
Life span | 35,000 HR | ||||
IP Rate | IP20 |
7. Packing, transportation & storage requirement
7.1, Packing Material
Name | Description | QTY |
Outer Carton | 575*365*405MM | 120pcs |
7.2, Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
7.3, Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box;
7.4, Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose;
7.5, Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
