SG-A65C009W01

Published: 2015-5-5 16:42:39

1. Summarize:

Model:

Edition

SC-A65C009W01

A0

2. Application:

9W E27 LED bulb can be used for offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.

3. LED bulb Features:

3.1, Energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
3.2, Driver uses international advanced isolated low voltage constant current driving scheme and reasonable layout design, improving the precision of constant current of the driver and surge handling capability, so the led light source can work more stably under frequent switching condition. Driver output has over current protection, over voltage protection and short circuit protection, to ensure the safety and stability of the product.
3.3, No flickering and glaring; high CRI; shock-resistant;
3.4, Professional appearance design makes the product simple and elegant, suiting for many illumination places.
3.5,LED light source is adopted advanced making process and high quality chips, so the led is very bright.

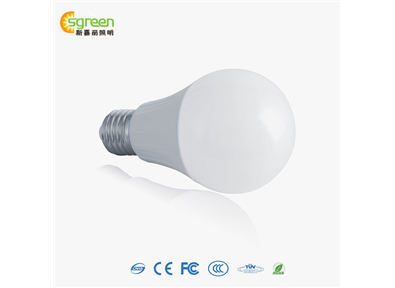

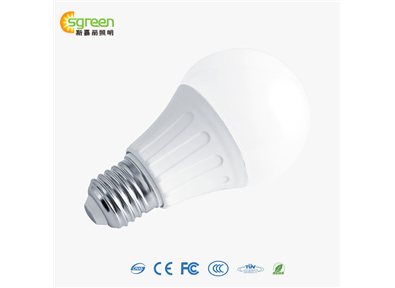

4. Product size photo

9W E27 LED bulb

5. Product material

Lamp body

Diffusive lampshade

light source

Driver

Finish

Plastic &aluminum mixed

light transmittance≥89%

SMD 5630 0.5W

Isolated & constant current drive

white

6. Specification

LED Model No.

SC-A65C009W01

Rated power

9W

Consume power

9±1W

Input Voltage

AC 100-240V

Base:

E27

P.F

≥0.50

Lighting CCT

2700-6500K

Luminous Efficiency(lm/w)

≥80

Lighting LM

720±50 lm

730±50 lm

740±50 lm

750±50 lm

Lighting View Angle

300°

Lighting CRI

≥80

Working Temp.

-10℃~40℃ / R.H.≤85%

Storage Temp.

-30~65℃

Life span

35,000 HR

IP Rate

IP20

7. Packing, transportation & storage requirement
7.1, 9W E27 LED bulb packing Material

Name

Description

QTY

Outer Carton

390*465*535mm

120pcs

7.2, Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
7.3, Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box;
7.4, Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose;
7.5, Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
