SG-PAR38A018D01
1. Summarize:
Model: | Edition | Doc. NO. |
SC-PAR38A018D01-30/40/60 | A0 | SC-PAR38A018D01 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot,
factories, municipal engineering, houses etc.
3.Product Features:
3.1, energysaving and environmental, no ultraviolet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection,
over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology,
product malfunction life span achieve to 25000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

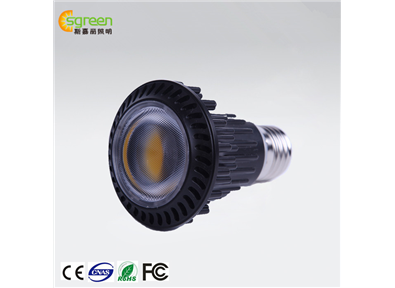

4. Product Photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥82% | COB | wide Input driver | Black silver-gray |
6.LED Par Light Par38 Specification
ED Model No. | SC-MR16A005D02-30 | SC-MR16A005D02-40 | SC-MR16A005D02-60 | ||
Rated power | 4W | ||||
Consume power | 5±1W | ||||
Input Voltage | AC 100-240V | ||||
Output Voltage | 12-18V | ||||
Input current | 280mA±5% | ||||
Efficiency | ≥72% | ||||
Base： | E27 | ||||
P.F | ≥0.50 | ||||
Light Source CRI | Warm white | Natural white | Pure white | ||
3000±200k | 4000±300k | 6000±300k | |||
Light Source Luminous flux（lm） | ≥360LM | ≥380LM | ≥380LM | ||
Lighting CCT | 3000±300k | 4000±300k | 6000±500k | ||
Lighting LM | 320±50LM | 350±50LM | 350±50LM | ||
Lighting View Angle | 45° | ||||
Lighting CRI | ≥70/≥80 | ||||
Key point temperature | LED Welding foot | Lamp shell | |||
≤75℃ | ≤70℃ | ||||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||||
Storage Temp. | -30~65℃ | ||||
Life span | 25,000 HR | ||||
IP Rate | IP20 | ||||
7.Opto-Electrical Parameter
Natural White
8、Packing, transportation & storage requirement
8.1, Packing Material
Name | Description | QTY | ||
PE bag | / | / | / | / |
White box | 53*53*65mm | 1pcs | N.W | 90±30g/1PCS |
Big carton case | 285*285*280mm | 1/100pcs | G.W | 10±0.5kg/carton |
Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
Storage requirement: moistureproof,dustproof, avoid press, avoid tumble,
avoid acid and base, avoid direct sunshine and expose；
storage expires: One year. exceed the expire time must Reinspect electricity function before use.
