SG-T5A008S06
1. Summarize:
Model: | Edition |
SC-T5A008S06-30/40/60 | A0 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED Tube Features:
3.1, energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 35000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

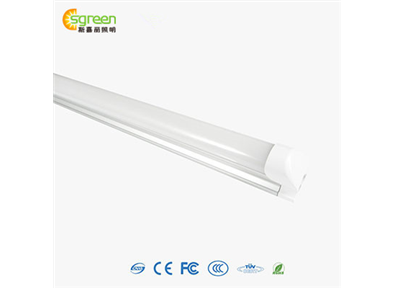

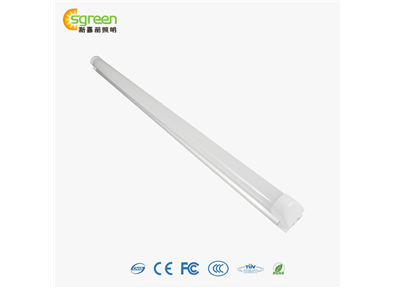

4. Product size photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥88% | 2835 /0.2W | Isolated driver, EMC approved | silver-gray |
6. Specification
LED Model No. | SC-T5A008S06-30 | SC-T5A008S06-40 | SC-T5A008S06-60 | ||
Power | 8±0.5W | ||||
Input Voltage | AC 100-240V | ||||
Output Voltage | 30-48V | ||||
Input current | 200mA±5% | ||||
Efficiency | ≥85% | ||||
Base | Integrated | ||||
P.F | ≥0.92 | ||||
Lighting CCT | Warm white | Natural white | Pure white | ||
3000±200k | 4200±250k | 6200±250k | |||
Lighting LM | 640±50LM | 720±50LM | 800±50LM | ||
Lighting View Angle | 120° | ||||
Lighting CRI | ≥70/≥80 | ||||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||||
Storage Temp. | -30~65℃ | ||||
Life span | 35,000 HR | ||||
IP Rate | IP20 | ||||
7. Packing, transportation & storage requirement
7.1, Packing Material
Name | Description | QTY | Weight |
PE bag | Φ30*620mm | 1pcs | 8±3g |
White box | L605*W50*H50mm | 1pcs | 270±30g/1PCS |
Outer Carton | L620*W265*H220 mm | 20pcs | 6.6±0.5kg/carton |
7.2, Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
7.3, Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
7.4, Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
7.5, Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
