SG-T8A018S12
1. Summarize:
Model: | Edition |
SC-T8A018S12-30/40/60 | A0 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED Tube Features:
3.1, energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 35000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

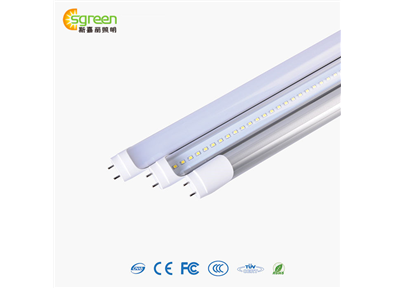

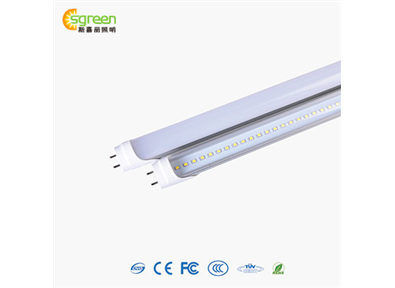

4. Product size photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥88% | 2835 0.2W | Isolated driver, EMC approved | silver-gray |
6. Specification
LED Model No. | SC-T8A018S12-30 | SC-T8A022S15-40 | SC-T8A022S15-60 | |
Consume power | 18±1W | |||
Input Voltage | AC 100-240V | |||
Output Voltage | 30-48V | |||
Input current | 480mA±5% | |||
Efficiency | ≥85% | |||
Base | G13 | |||
P.F | ≥0.92 | |||
Lighting CCT | 3000±250k | 4200±250k | 6200±250k | |
Lighting LM | 1650±100LM | 1730±100LM | 1800±100LM | |
Lighting View Angle | 120° | |||
Lighting CRI | ≥70/≥80 | |||
Working Temp. | -10℃~40℃ / R.H.≤85% | |||
Storage Temp. | -30~65℃ | |||
Life span | 35,000 HR | |||
IP Rate | IP20 | |||
7. Packing, transportation & storage requirement
7.1, Packing Material
Name | Description | QTY | Weight |
PE bag | Φ30*1220mm | 1pcs | 15±5g |
White box | L1235*W45*H45mm | 1pcs | 480±30g/1PCS |
Outer Carton | L1250*W240*H200 mm | 20pcs | 11.4±0.5kg/carton |
7.2, Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
7.3, Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
7.4, Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
7.5, Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
