SC-DLC009W02
1. Summarize:
Model: | Edition |
SC-DLC009W02-30/40/60 | A0 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED down light Features:
3.1, energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 35000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

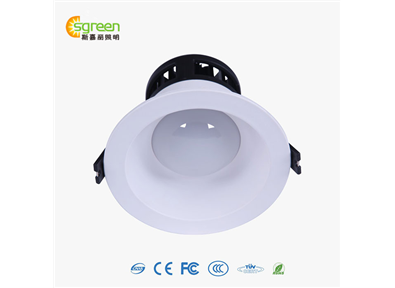

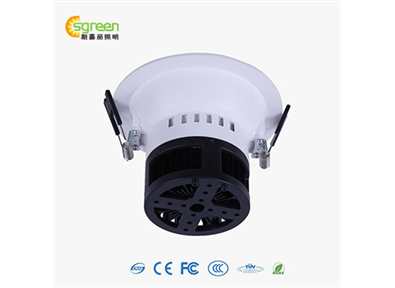

4. Product size photo
5. Product material
| Lamp body | Diffusive lampshade | light source | Driver | Finish |
| aluminium alloy | light transmittance≥90% | 2835 0.2W | Isolated driver, EMC approved | white/black |
6. Specification
LED Model No. | SC-DLC009W02-30 | SC-DLC009W02-40 | SC-DLC009W02-60 |
Power | 9±1W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 18-24V | ||
Input current | 300mA±5% | ||
Efficiency | ≥85% | ||
Cutout | Ф120mm | ||
Lighting CCT | 3000±250k | 4200±250k | 6200±250k |
Lighting LM | 700±50LM | 730±50LM | 765±50LM |
Lighting View Angle | 90° | ||
Lighting CRI | ≥70/≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 35,000 HR | ||
IP Rate | IP20 | ||
7. Packing, transportation & storage requirement
Packing Material
Name | Description | QTY | Weight |
PE bag | L280*W250mm | 1pcs | 20±5g |
White box | W150*L150*H110mm | 1pcs | 420±30g/1PCS |
Outer Carton | W465*L465*H240mm | 18pcs | 8.56±0.5kg/carton |
* Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
* Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
* Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
* Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
