SG-GDA045W01
Summarize:
Model: | Edition | Doc. NO. |
SC-GDA045W01-30/40/60
| A0 | SC-GDA045W01 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories,
municipal engineering, houses etc.
3.Product Features:
3.1, energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection,
over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology,
product malfunction life span achieve to 25000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

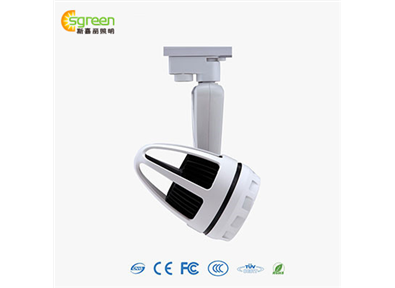

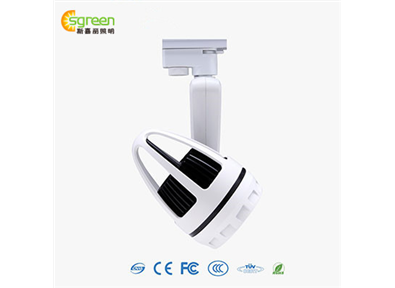

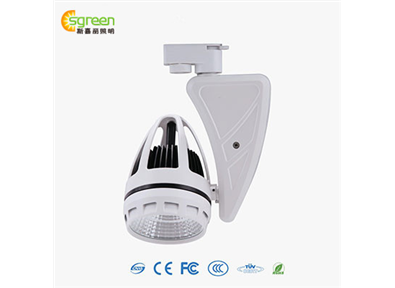

4. Product Photo
5.Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥85% | COB | wide Input driver, EMC approved | White |
6.Specification
LED Model No. | SC-GDA045W01-30 | SC-GDA045W01-40 | SC-GDA045W01-60 | |
Rated power | 38W | |||
Consume power | 45±3W | |||
Input Voltage | AC 100-240V | |||
Output Voltage | 32-42V | |||
Input current | 1050mA±5% | |||
Efficiency | ≥85% | |||
Can match orbit： | Two-wire/Three-wire/Four-wire | |||
P.F | ≥0.90 | |||
Light Source CRI | Warm white | Natural white | Pure white | |
3000±200k | 4000±300k | 6000±300k | ||
Light Source Luminous flux（lm） | ≥3400LM | ≥3500LM | ≥3600LM | |
Lighting CCT | 3000±300k | 4000±300k | 6000±500k | |
Lighting LM | 3000±200LM | 3050±200LM | 3100±200LM | |
Lighting View Angle | 15°/24°/60° | |||
Lighting CRI | ≥70/≥80 | |||
Key point temperature | LED Welding foot | Lamp shell | ||
≤75℃ | ≤70℃ | |||
Working Temp. | -10℃~40℃ / R.H.≤85% | |||
Storage Temp. | -30~65℃ | |||
Life span | 25,000 HR | |||
IP Rate | IP20 | |||
7、Packing, transportation & storage requirement
7.1, Packing Material
Name | Description | QTY | ||
PE bag | 380*285mm | 1pcs | N.W | 35±3g |
White box | 223*118*303mm | 1pcs | N.W | 1600±30g/1PCS |
Big carton case | 480*455*330mm | 1/8pcs | G.W | 14.58±0.5kg/carton |
7.2, Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
7.3、Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
7.4、Storage requirement: moistureproof,dustproof, avoid press,
avoid tumble, avoid acid and base, avoid direct sunshine and expose；
7.5、storage expires: One year. exceed the expire time must Re-inspect electricity function before use.
