SG-GDG030W01
1. Summarize:
Model: | Edition |
SC-GDG030W01-30/40/60 | A0 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED track light Features:
* Conform to ROHS requires，Energy-saving and environmental, no ultra-violet, mercury or infrared,
* Isolated low voltage, constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
* Adopt imported light source and advanced heat dissipation technology, life span achieve to more than 35000 hrs.
* Can be frequent starting, no flickering or glaring; high CRI; shock-resistant;
* Simple elegant appearance, new attractive design, suitable for many illumination places.

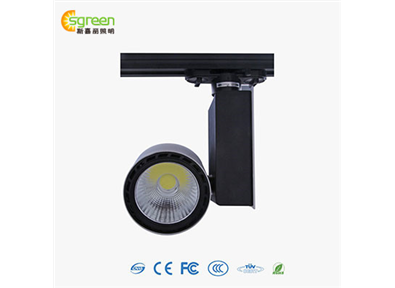

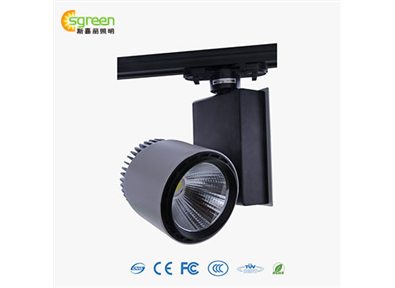

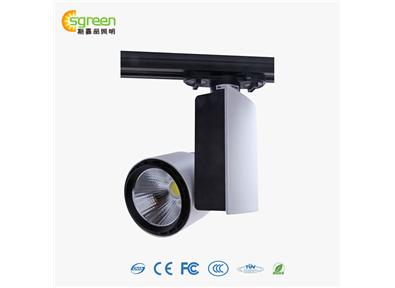

4. Product size photo
5. Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥95% | COB | Isolated driver, EMC approved | white+black |
6. Specification
LED Model No. | SC-GDG030W01-30 | SC- GDG030W01-40 | SC- GDG030W01-60 |
Power | 30±2W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 30-32V | ||
Input current | 900mA±5% | ||
Efficiency | ≥85% | ||
Match tracking rail | Two-wires/Three-wires/Four-wires | ||
Lighting CCT | 3000±250k | 4200±250k | 6200±250k |
Lighting LM | 2400±150LM | 2500±150LM | 2550±150LM |
Lighting View Angle | 30°/45°/60° | ||
Lighting CRI | ≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 35,000 HR | ||
IP Rate | IP20 | ||
7. Packing, transportation & storage requirement
Packing Material
Name | Description | QTY | Weight |
PE bag | 380*285mm | 1pcs | 35±3g |
White box | 205*150*100MM | 1pcs | 860±30g/1PCS |
Outer Carton | 420*310*410MM | 16pcs | 15±0.5kg/carton |
* Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
* Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
* Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
* Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
