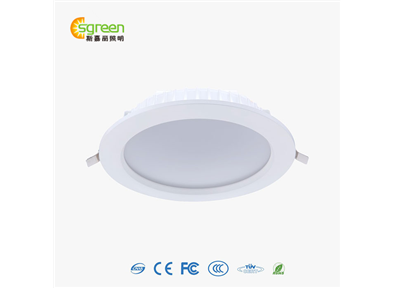

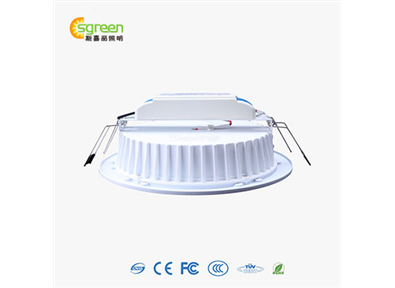

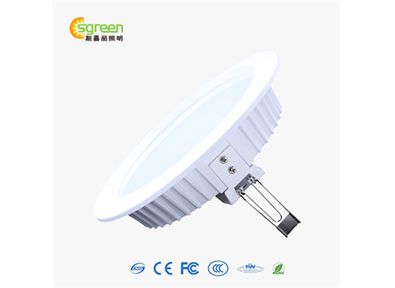

SC-DLA007W01
1.Summarize o
| Model: | Edition |
| SC-DLA007W01-30/40/60 | A0 |
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED down light Features
* Conform to ROHS requires，Energy-saving and environmental, no ultra-violet, mercury or infrared,
* Isolated low voltage, constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
* Adopt imported light source and advanced heat dissipation technology, life span achieve to more than 35000 hrs.
* Can be frequent starting, no flickering or glaring; high CRI; shock-resistant;
* Simple elegant appearance, new attractive design, suitable for many illumination places.

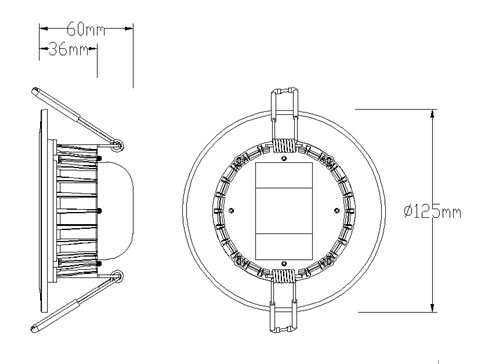

4. Product size photo o
5. Product material
| Lamp body | Diffusive lampshade | light source | Driver | Finish |
| aluminium alloy | light transmittance≥85% | 5630 0.5W | Isolated driver, EMC approved | white/ silver-gray |
| LED Model No. | SC-DLA007W01-30 | SC-DLA007W01-40 | SC-DLA007W01-60 |
| Power | 7±0.5W | ||
| Input Voltage | AC 100-240V | ||
| Output Voltage | 18-24V | ||
| Input current | 280mA±5% | ||
| Efficiency | ≥80% | ||
| Cutout： | Ф90mm | ||
| P.F | ≥0.70 | ||
| Lighting CCT | 3000±250k | 4200±250k | 6200±250k |
| Lighting LM | 550±50LM | 580±50LM | 600±50LM |
| Lighting View Angle | 120° | ||
| Lighting CRI | ≥70/≥80 | ||
| Working Temp. | -10℃~40℃ / R.H.≤85% | ||
| Storage Temp. | -30~65℃ | ||
| Life span | 35,000 HR | ||
| IP Rate | IP20 | ||
7. Packing, transportation & storage requirement
Packing Material o
| Name | Description | QTY | Weight |
| PE bag | 240*210mm | 1pcs | 12±5g |
| White box | 130mm*130mm*60mm | 1pcs | 400±30g/1PCS |
| Outer carton | 400mm*310mm*270mm | 30pcs | 13.5±0.5kg/carton |
* Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
* Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
* Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
* Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
