SC-DLA010W01
1. Summarize:
Model: | Edition | Doc. NO. |
SC-DLA010W01-30/40/60 | A0 | SC-DLA010W01 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot,
factories, municipal engineering, houses etc.
3.Product Features:
3.1, energy-saving and environmental, no ultraviolet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection,
over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology,
product malfunction life span achieve to 25000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

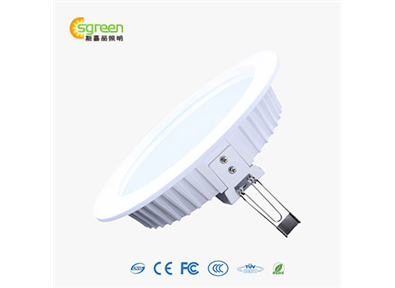

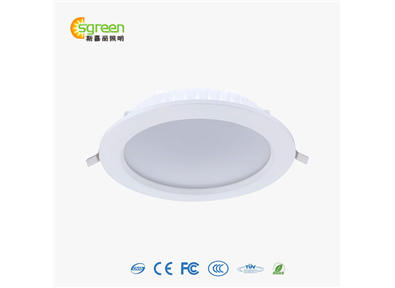

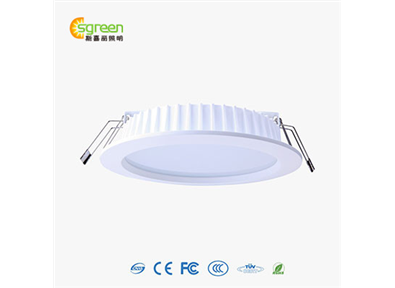

4. Product Photo
5.Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥85% | 5630 0.5W | wide Input driver, EMC approved | white/ silver-gray |
6.Specification
LED Model No. | SC-DLA010W01-30 | SC-DLA010W01-40 | SC-DLA010W01-60 | |
Rated power | 8W | |||
Consume power | 10±1W | |||
Input Voltage | AC 100-240V | |||
Output Voltage | 32-42V | |||
Input current | 220mA±5% | |||
Efficiency | ≥80% | |||
Cutout： | Ф120mm | |||
P.F | ≥0.80 | |||
Light Source CRI | Warm white | Natural white | Pure white | |
3000±200k | 4000±300k | 6000±300k | ||
Light Source Luminous flux（lm） | ≥50.0LM | ≥55LM | ≥60LM | |
Lighting CCT | 3000±300k | 4000±300k | 6000±500k | |
Lighting LM | 800±80LM | 820±80LM | 850±80LM | |
Lighting View Angle | 120° | |||
Lighting CRI | ≥70/≥80 | |||
Key point temperature | LED Welding foot | Lamp shell | ||
≤75℃ | ≤70℃ | |||
Working Temp. | -10℃~40℃ / R.H.≤85% | |||
Storage Temp. | -30~65℃ | |||
Life span | 25,000 HR | |||
IP Rate | IP20 | |||
7、Packing, transportation & storage requirement
7.1, LED down light Packing Material
Name | Description | QTY | ||
PE bag | 270*240mm | 1pcs | N.W | 15±5g |
White box | 160mm*160mm*80mm | 1pcs | N.W | 465±30g/1PCS |
Big carton case | 345mm*335mm*335mm | 1/16pcs | G.W | 8.95±0.5kg/carton |
Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
Storage requirement: moistureproof,dustproof, avoid press, avoid tumble,
avoid acid and base, avoid direct sunshine and expose；
storage expires: One year. exceed the expire time must Reinspect electricity function before use.
