SC-DLA012W01
1. Summarize
Model: | Edition |
SC-DLA012W01-30/40/60 | A0 |
2. Application of LED downlight 230V
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED down light Features
* Conform to ROHS requires，Energy-saving and environmental, no ultra-violet, mercury or infrared,
* Isolated low voltage, constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
* Adopt imported light source and advanced heat dissipation technology, life span achieve to more than 35000 hrs.
* Can be frequent starting, no flickering or glaring; high CRI; shock-resistant;
* Simple elegant appearance, new attractive design, suitable for many illumination places.

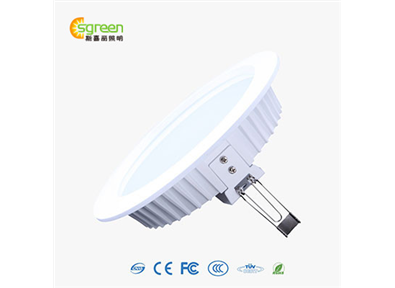

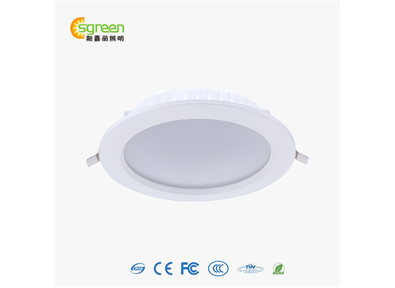

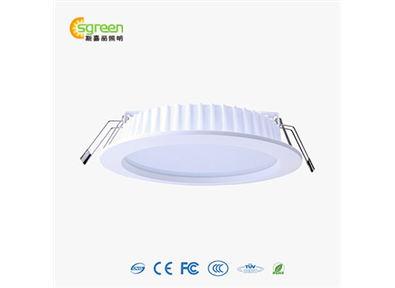

4. Product size photo
5. Product material of LED downlight 230V
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥85% | 5630 0.5W | Isolated driver, EMC approved | white/ |
6. Specification
LED Model No. | SC-DLA012W01-30 | SC-DLA012W01-40 | SC-DLA012W01-60 |
Power | 12±1W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 32-42V | ||
Input current | 280mA±5% | ||
Efficiency | ≥85% | ||
Cutout： | Ф120mm | ||
P.F | ≥0.80 | ||
Lighting CCT | 3000±250k | 4200±250k | 6200±250k |
Lighting LM | 950±100LM | 980±100LM | 1020±100LM |
Lighting View Angle | 120° | ||
Lighting CRI | ≥70/≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 35,000 HR | ||
IP Rate | IP20 | ||
7. Packing, transportation & storage requirement
Packing Material of LED downlight 230V
Name | Description | QTY | Weight |
PE bag | 270*240mm | 1pcs | 15±5g |
White box | 160mm*160mm*80mm | 1pcs | 475±30g/1PCS |
Outer carton | 345mm*335mm*335mm | 16pcs | 9.1±0.5kg/carton |
* Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
* Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
* Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
* Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
