SC-DLC004W02
1. Summarize:
Model: | Edition | Doc. NO. |
SC-DLC004W01-30/40/60
| A0 | SC-DLC004W01 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot,
factories, municipal engineering, houses etc.
3.Product Features:
3.1, energy-saving and environmental, no ultraviolet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection,
over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology,
product malfunction life span achieve to 25000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

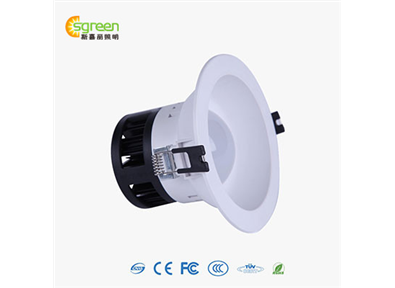

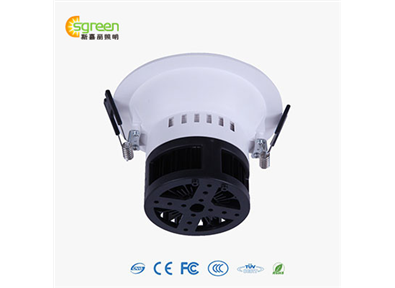

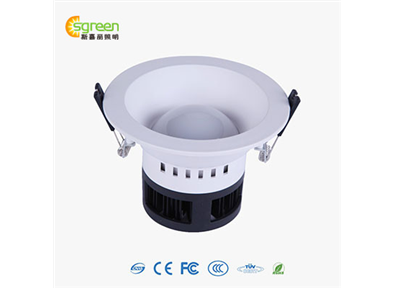

4. Product Photo of 4W LED dimmable downlight
5.Product material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminium alloy | light transmittance≥80% | 2835 0.2W | wide Input driver, EMC approved | white/ black |
6.LED down light Specification
LED Model No. | SC-DLC004W02-30 | SC-DLC004W02-40 | SC-DLC004W02-60 |
Power | 4±0.5W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 6-12V | ||
Input current | 300mA±5% | ||
Efficiency | ≥85% | ||
Cutout | Ф95mm | ||
Lighting CCT | 3000±250k | 4200±250k | 6200±250k |
Lighting LM | 300±30LM | 320±30LM | 340±30LM |
Lighting View Angle | 90° | ||
Lighting CRI | ≥70/≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 35,000 HR | ||
IP Rate | IP20 | ||
7.Opto-Electrical Parameter
Natural White
8、Packing, transportation & storage requirement
8.1, Packing Material
Name | Description | QTY | ||
PE bag | L230*W200mm | 1pcs | N.W | 15±5g |
White box | W120*L120*H90mm | 1pcs | N.W | 240±30g/1PCS |
Big carton case | W615*L255*H200mm | 1/20pcs | G.W | 5.8±0.5kg/carton |
Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
Storage requirement: moistureproof,dustproof, avoid press, avoid tumble,
avoid acid and base, avoid direct sunshine and expose；
storage expires: One year. exceed the expire time must Reinspect electricity function before use.
