No.SC-DLE007W01
1. Summarize:
Model: | Edition |
SC-DLE007W01-30/40/60 | A0 |
2. Application:
Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
3. LED down light Features:
3.1, energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
3.2, Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;
3.3, Adopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 35000 hrs.
3.4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;
3.5, Simple & elegant appearance, newly & attractive design, suit for many illumination places.

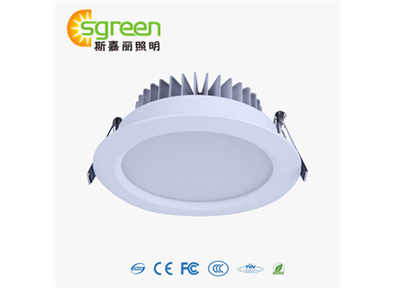

4. Product size photo of LED downlight 7w qualified
5. Product material
| Lamp body | Diffusive lampshade | light source | Driver | Finish |
| aluminium alloy | light transmittance≥85% | SMD | Isolated driver, EMC approved | white/silvery |
6. Specification
LED Model No. | SC-DLE007W01-30 | SC-DLE007W01-40 | SC-DLE007W01-60 |
Power | 7±0.5W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 18-24V | ||
Input current | 265mA±5% | ||
Efficiency | ≥85% | ||
Cutout | Ф95mm | ||
P.F | ≥0.50 | ||
Lighting CCT | 3000±250k | 4200±250k | 6200±250k |
Lighting LM | 535±50LM | 560±50LM | 595±50LM |
Lighting View Angle | 110° | ||
Lighting CRI | ≥70/≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 35,000 HR | ||
IP Rate | IP20 | ||
7. Packing, transportation & storage requirement
Packing Material
Name | Description | QTY | Weight |
PE bag | L210*W180mm | 1pcs | 15±3g |
White box | W120*L120*H70mm | 1pcs | 340±30g/1PCS |
Outer Carton | W365*L255*H260mm | 20pcs | 7.8±0.5kg/carton |
* Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;
* Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box；
* Storage requirement: moistureproof, dust proof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose；
* Storage expires in one year. exceed the expire time must Re-inspect electricity function before use.
